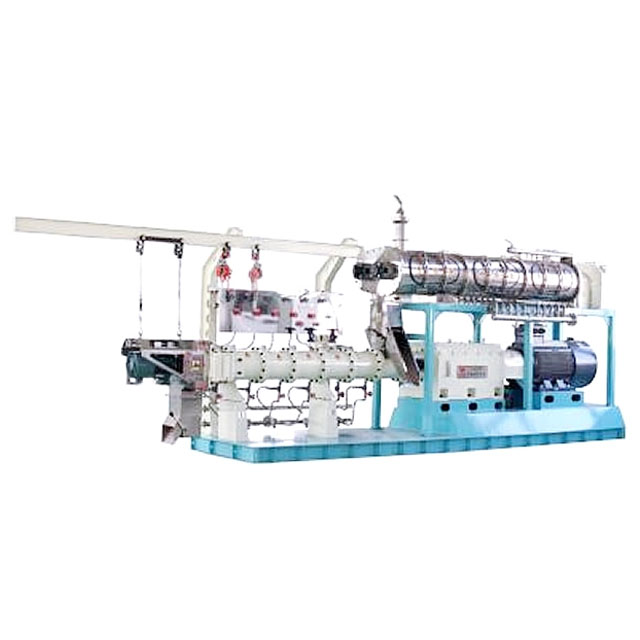

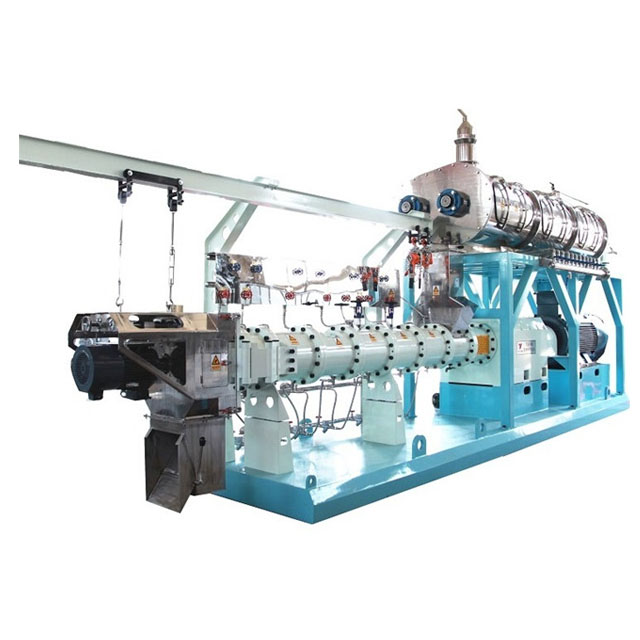

Twin-Screw Wet Extruder
Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.
The gearbox can stand strong torque and thrust up to 400hp.
Wechat/Whatsapp: +86 158 9501 0780 | Skype:shao.kevin19 | EMAIL:info@iklaym.com
Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.
The gearbox can stand strong torque and thrust up to 400hp.
Model | Main Power (KW) | Feeder Power (KW) | Conditioner Power (KW) | Cutter Power (KW) | Capacity(T/H) |
---|---|---|---|---|---|
WTSE68 | 55/75 | 1.5 | 5.5 | 3 | 0.6~1.5 |
WTSE98 | 90/110 | 1.5 | 11 | 5.5 | 1.5~2.5 |
WTSE128 | 132/160/200 | 1.5 | 15/18.5 | 5.5 | 3.0~7.0 |
WTSE148 | 250/315 | 2.2 | 18.5/22 | 7.5 | 6.0~12.0 |
1.Stainless steel DDC with 12 steam injectors and 6 liquid nozzles.
2.The gearbox can stand strong torque and thrust up to 400hp.
3.Jacket design barrel with liner can achieve heating/cooling function. Steam and water can also be injected directly into the barrel.
4.Screw is made of special anti-wear alloy with L/D ratio up to 18:1 that assures smoothly production for all kinds of sinking/floating feed.
5.Fast replacing mechanism for die and screw and on-line adjustment for cutter.
