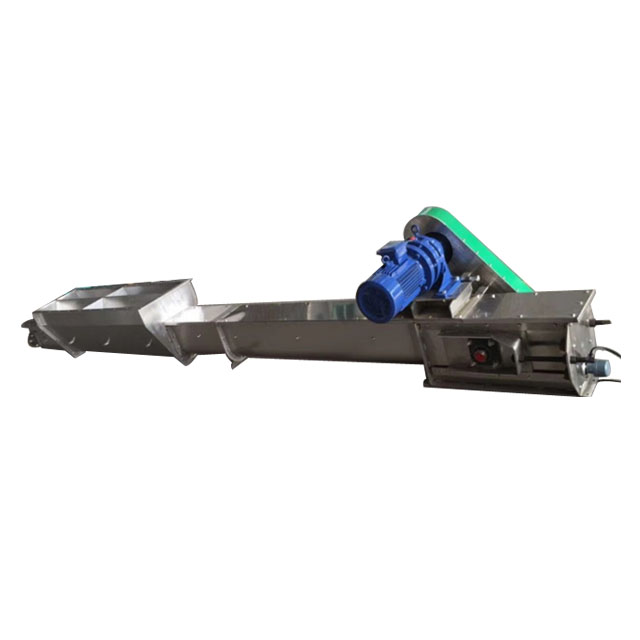

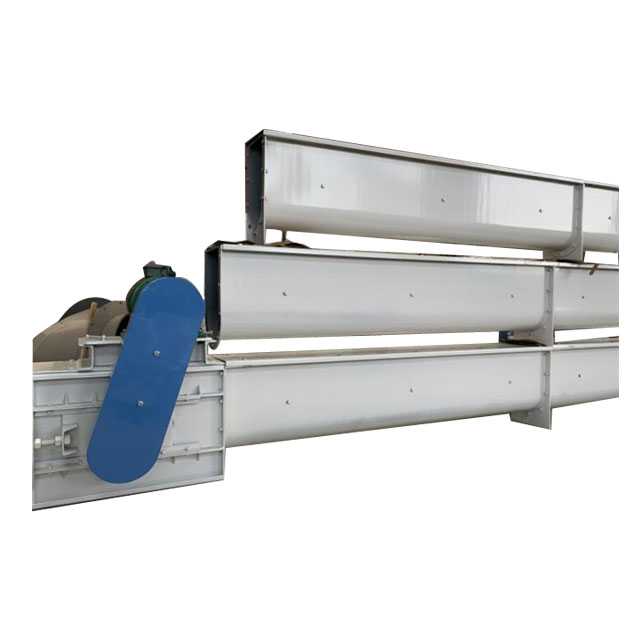

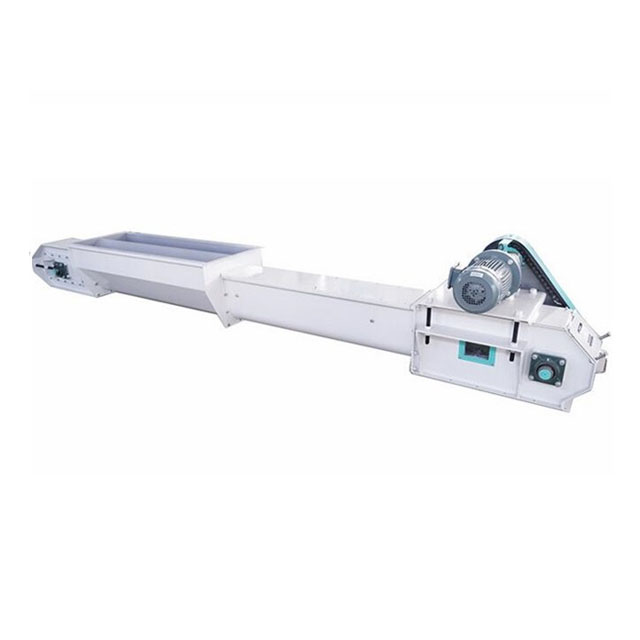

There are two types optional:TGSS type and TGSU type. U type is adopted with U-shaped scraper with self-cleaning function.The materials residues during transportation is little.The technical parameters basically are the same for the two types.
| Type | Diameter of drive bays(mm) | Scraper Chain pitch(mm) | Scraper spacing(mm) | Scraper chain speed(m/sec) | Transport function(m3/h) | Max capacity (m) | Motor power(KW) | ||
|---|---|---|---|---|---|---|---|---|---|
| Material bulk density(t/m3) | |||||||||
| 0.2 | 0.5 | 0.75 | |||||||
| TGSS(U)16 | 160 | 60 | 254 | 0.35 | 15 | 31 | 16 | 11 | Depending on the length of the match |
| 0.4 | 25 | 24 | 13 | 9 | |||||
| 0.5 | 32 | 19 | 11 | 7 | |||||
| TGSS(U)20 | 200 | 60 | 254 | 0.35 | 22 | 31 | 16 | 11 | |
| 0.4 | 30 | 24 | 13 | 9 | |||||
| 0.5 | 38 | 19 | 11 | 7 | |||||
| TGSS(U)25 | 250 | 60 | 254 | 0.35 | 25 | 31 | 16 | 11 | |
| 0.4 | 35 | 24 | 13 | 9 | |||||
| 0.5 | 42 | 19 | 11 | 7 | |||||
| TGSS(U)32 | 320 | 80 | 320 | 0.35 | 40 | 31 | 16 | 11 | |
| 0.4 | 48 | 24 | 13 | 9 | |||||
| 0.5 | 60 | 19 | 11 | 7 | |||||
| TGSS(U)36 | 360 | 80 | 320 | 0.35 | 45 | 31 | 16 | 11 | |
| 0.4 | 60 | 24 | 13 | 9 | |||||
| 0.5 | 76 | 19 | 11 | 7 | |||||
1.There are two types optional:TGSS type and TGSU type. U type is adopted with U-shaped scraper with self-cleaning function.The materials residues during transportation is little.The technical parameters basically are the same for the two types.
2.Long conveying distance,large conveying capacity,simple structure,good sealing per-formance,easy installation and maintenance.
3.Multi-points feeding,multi-point discharging make it more flexible for processing selection and arrangements.

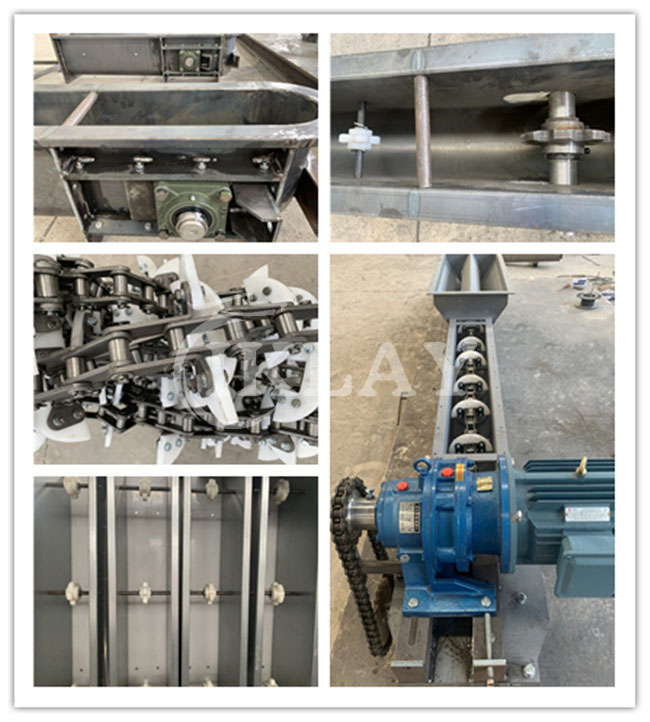

4.The conveying track uses wear-resistant materials to reduce vibration and increase service life.
5.The start can be heavy-load start.And it is equipped with anti-blocking,anti-chain scission and alarm devices,which improves equipment reliability.
6. Suitable for conveying horizontally or in a inclined way. It is widely used in food, oil, rice, feed and other industries.
