Screw Conveyor
The enclosed screw conveyor uses cycloid pinwheel reducer drive, drive torque.
Share this post!
Wechat/Whatsapp: +86 158 9501 0780 | Skype:shao.kevin19 | EMAIL:info@iklaym.com
Products
Product Category
Recommend
-
Ordinary Electronic Balance
-
Pellet Mill Dies
-
Roller Shell
Technical Parameter
TLSS Screw Conveyor
| Parameters | Model | |||||
|---|---|---|---|---|---|---|
| TLSS16 | TLSS20 | TLSS25 | TLSS32 | TLSS40 | ||
| Capacity(t/h) | 3-7 | 8-12 | 14-20 | 25-30 | 30-35 | |
| Screw Diameter(mm) | 160 | 200 | 250 | 320 | 400 | |
| Cylinder body wide(mm) | 180 | 220 | 270 | 340 | 420 | |
| Distance between blade and cylinder(mm) | 10 | 10 | 10 | 10 | 10 | |
| Max speed(rpm) | 140 | 140 | 130 | 110 | 100 | |
| Size(mm) | W | 260 | 300 | 360 | 435 | 525 |
| H | 342 | 422 | 502 | 612 | 762 | |
Feature
1. The enclosed screw conveyor uses cycloid pinwheel reducer drive, drive torque.
2. Professional manufacturing sounded blades, conveyor uniform, and made equal diameter pitch, adjustable isometric form.
3. The enclosed screw conveyor is small in size, high speed, uniform feeding, high accuracy, less residual.
4. The import vane of screw conveyor is arranged with reasonable way to insure the product.
5. You can assemble automatic alarm system and speed monitoring system.

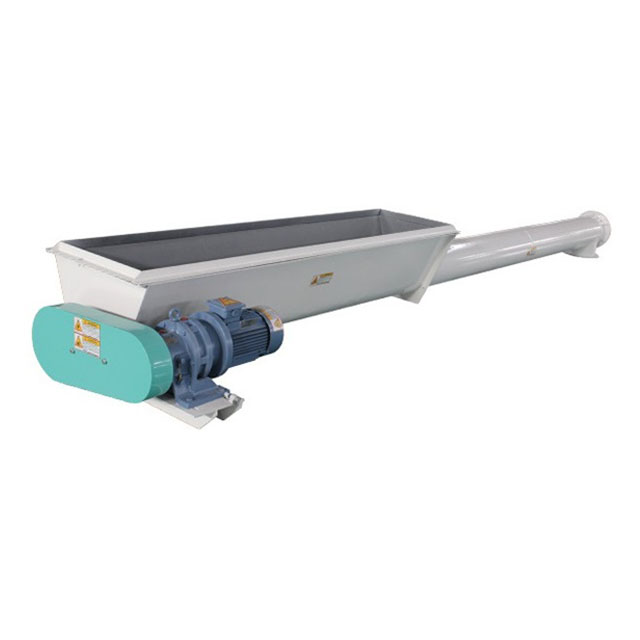

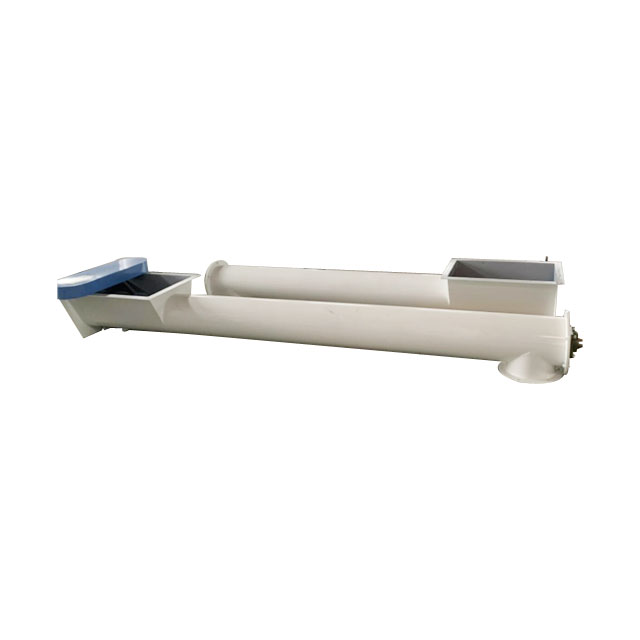

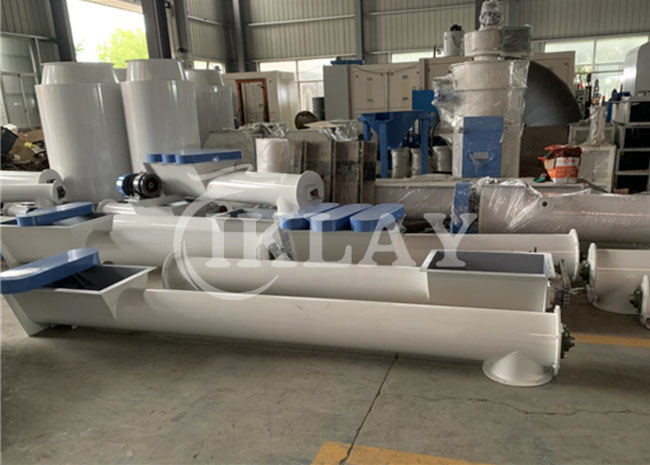

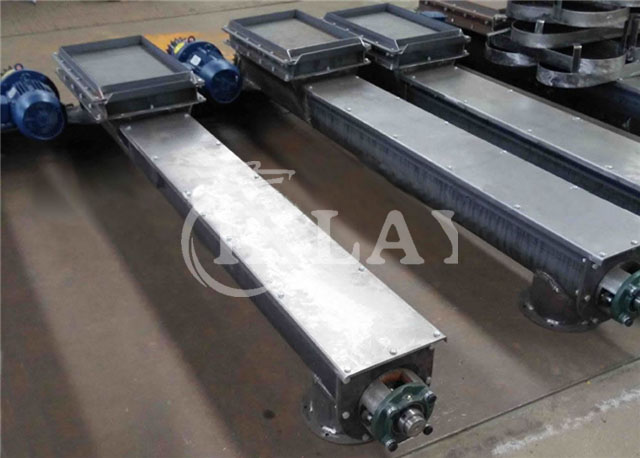

Pictures
