Single Shaft Paddle Mixer

Short mixing period, 30 to 90 seconds. Mixing uniformity with CV up to 5%, and does not produce segregation.

Original "double door machine slot 90 degrees" patent technology, discharge rapidly, the biggest possible to reduce residual, and good sealing.

Technical Parameter

SDHJ Single Shaft Paddle Mixer

Model Effective volume (M3) Power (KW) Capacity (KG/Batch)
SDHJ0.5 0.5 7.5 250
SDHJ1 1 15 500
SDHJ2 2 22 1000
SDHJ4 4 37 2000

Feature

1.Short mixing period, 30 to 90 seconds. Mixing uniformity with CV up to 5%, and does not produce segregation.

2.Original "double door machine slot 90 degrees" patent technology, discharge rapidly, the biggest possible to reduce residual, and good sealing.

3.Original "the axis of rotation of the gas seal structure" patent technology, better sealing effect, longer service life.

4.Unique design of return air system, to ensure that in the process of all-round feed discharging flow smoothly.

5.It can match the compressed air cleaning system, and the residue will be dropped to the lowest level.

6.Materials can be customized: painted carbon steel, stainless steel, composite materials, etc.

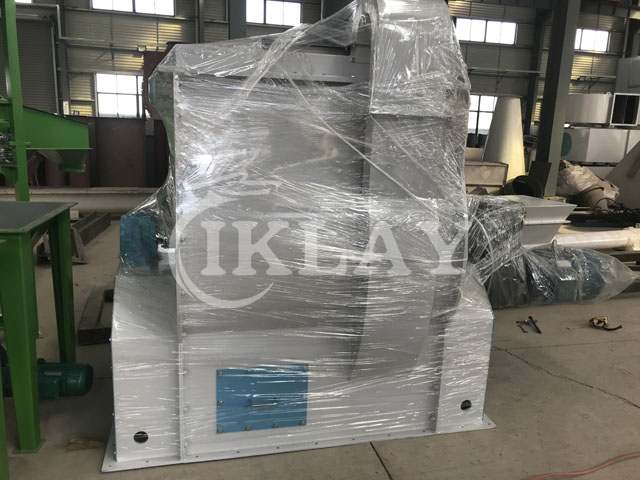

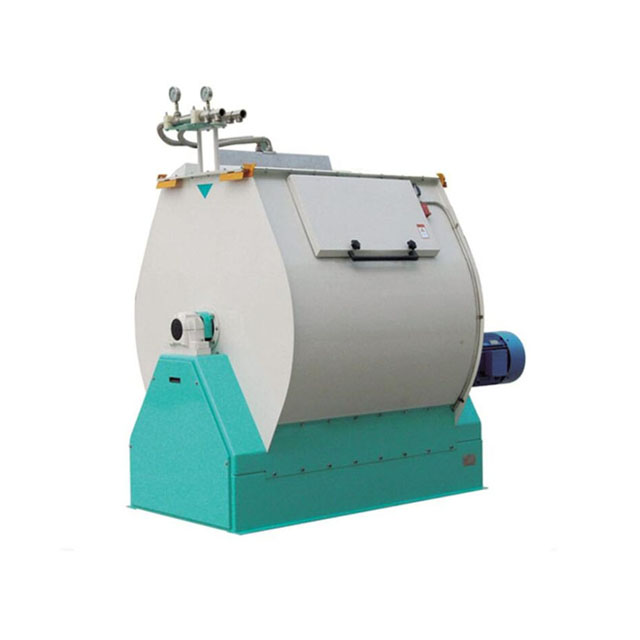

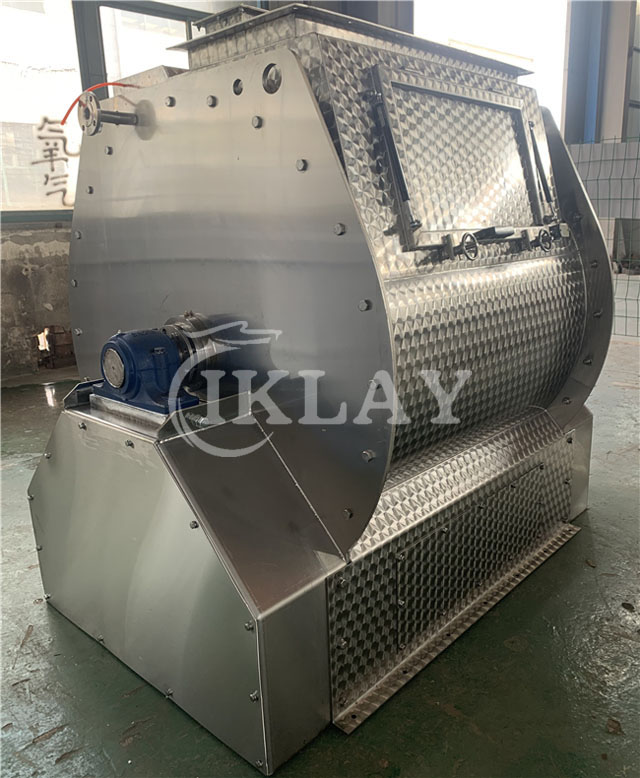

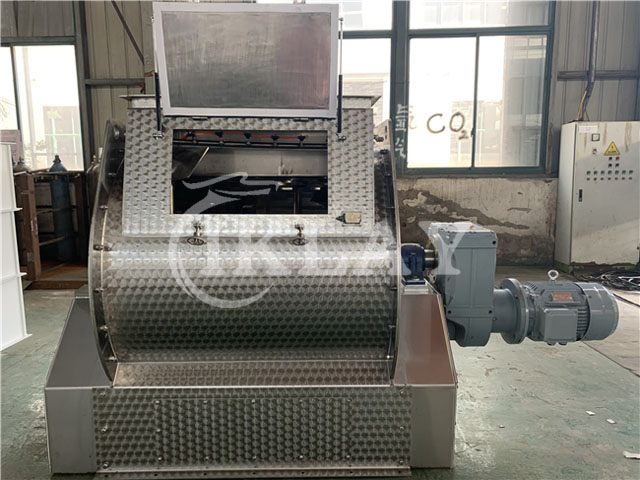

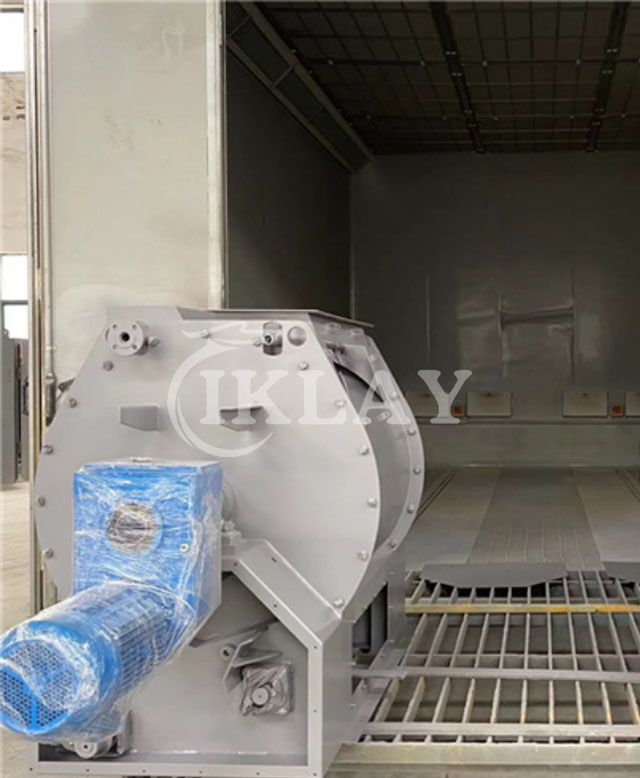

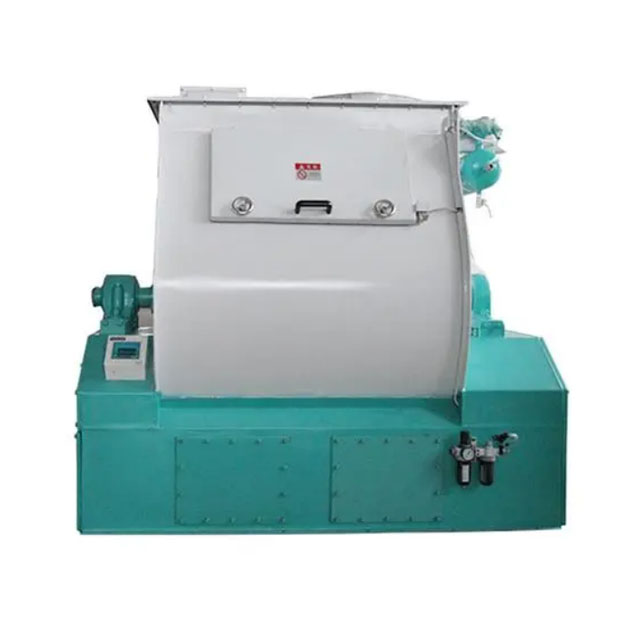

Pictures
